Description: Hot melt forming

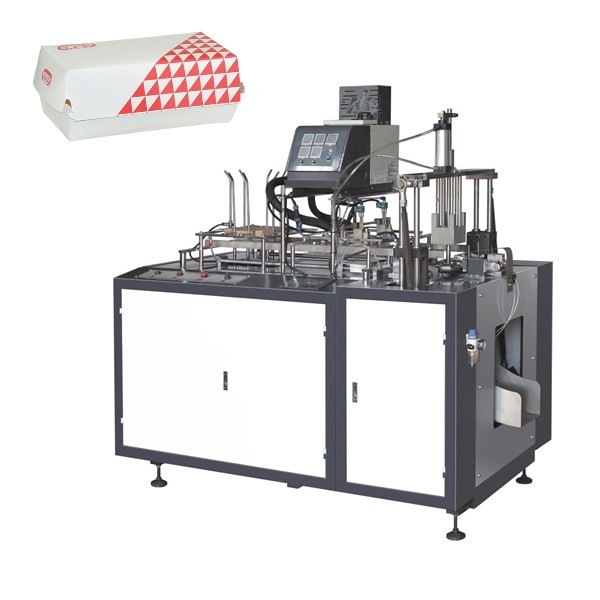

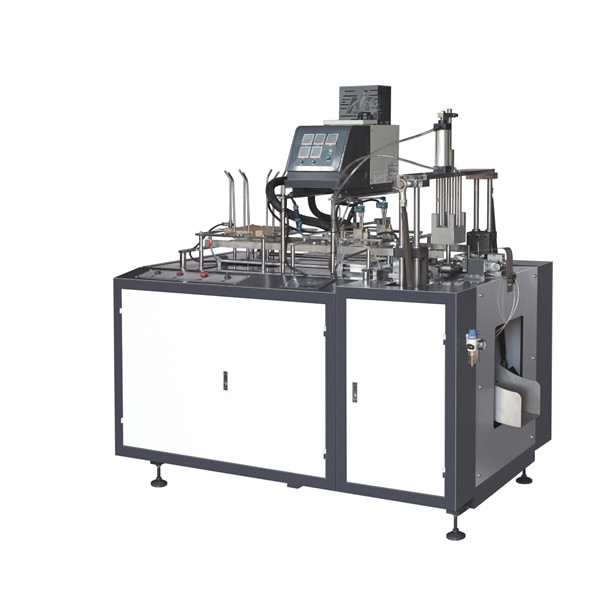

Three-dimensional carton machine is a special forming machine, it can produce hamburger cartons, hot dog cartons, food cartons, fast food cartons and French fries cartons, etc., cartons made of cardboard and corrugated paper, compared with plastic Boxes are more advantageous.
Features of three-dimensional box machine: high efficiency, speed up to 160pcs/min.
Versatility: On the same machine, it can manufacture lunch boxes, French fries boxes, three-dimensional boxes, hamburger boxes and other products of different specifications only by changing the mold.
This machine adopts water-based glue gluing device, which can achieve high efficiency and high accuracy. Water-based adhesives are water-soluble adhesives for food-grade use.
Most of the machine adopts high-quality sealed bearings (to prevent dust and liquid from entering and affecting the bearing life) with long life and good stability.
All are driven by high-quality synchronous belts, so that there is almost no error during the operation of the machine.
The main mold is made of pine wood material, and the replacement mold has high efficiency.
Can automatically collect and count finished products. Add an inventory calculator according to customer needs.
Technical parameter
| Hs Code | 8441309000 |
| Model | PLBM-B |
| Tye | Automatic |
| Available Size | Regular size (mold can be replaced) |
| Speed | 30-45pcs/minute |
| Paper material | 200-1000g/m2,paper/paperboard,aluminum foil coated paper,one side PE coated paper or other |
| Air pressure | 0.3Mpa |
| Total weight | 1200KG |
| Total power | 4KW |
| Opeartion space | About 2000*2000mm |
| note | Can be customized according to your requirements |
