Feature:

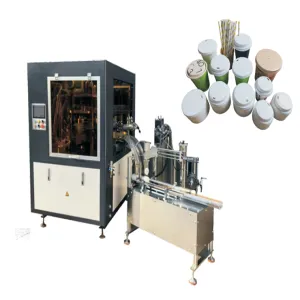

JNZG-60 paper lid machine is our patent machine, which make paper lid, paper cover.It's an automatic machine with the functions:Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss.logo), cross cut (make hole for straw), punching (punch the roll paper to lid open disc), auto feecdisc to mold, heating, folding, knurling, and discharge,With convey and counter for collection.
Technical Specification:
| Suitable paper | Single and double coated paper,coated coated paper,and glossycoated paper(250-350g/m2) |
| Forming size | Height(20-25)mm, JNZG-60 diameter(70x90)mm, Length*Width(60-100)pieces/minute |
| Package size | Packing size of paper bowl cover wood en box.（2730*1640*2130 |
| Power Source | AC380V 3-phase,50Hz |
| Total power | 13KW |
| Air requirement | Gas volume of 0.3 cubic meters per minute,The working pressure is 0.6MPa |
| Machine size | Land occupation length X width X height 3200X1700X1900 (mm) |
| Weight | Net weight of the machine, Paper cup lid2200KG, gross weight, 2400KG |
